Industrial Mini Computer Intel Core i7-13650HX

High-performance industrial mini computer powered by Intel® Core™ i7-13650HX, designed for flexible system integration with multiple serial, GPIO, Ethernet, USB and HDMI interfaces.

Applications: Parking Systems · Access Control · Turnstile Systems · Warehouse Integration

Industrial Computing

High performance.
Built for integration.

Powered by the Intel Core i7-13650HX, this compact industrial computer combines 14 cores, 20 threads, DDR5 memory and extensive connectivity for demanding industrial and commercial applications.

Processor

Intel Core i7-13650HX · 14 Cores / 20 Threads

Graphics

Intel UHD Graphics for 13th Gen

Memory

16GB DDR5

Storage

1TB SSD

Network

2 × 2.5GbE LAN

Display

4 × HDMI

Connectivity

Extensive I/O for industrial environments.

Connect displays, network equipment, controllers, sensors and industrial peripherals from one compact platform.

4× USB 3.0

4× USB 2.0

4× HDMI Output

2× 2.5GbE LAN

14× GPIO

6× RS232 Serial Ports

2× Wi-Fi Antenna Interfaces

1× Audio Input / Output

Powerful multi-core processing.

The Intel Core i7-13650HX provides 14 cores and 20 threads, delivering strong processing capability for applications involving multiple devices, monitoring services, databases and operational software.

Multi-display capability.

Four integrated HDMI outputs allow compatible multi-screen installations for monitoring, administration, operational information and system status displays.

Designed for industrial integration.

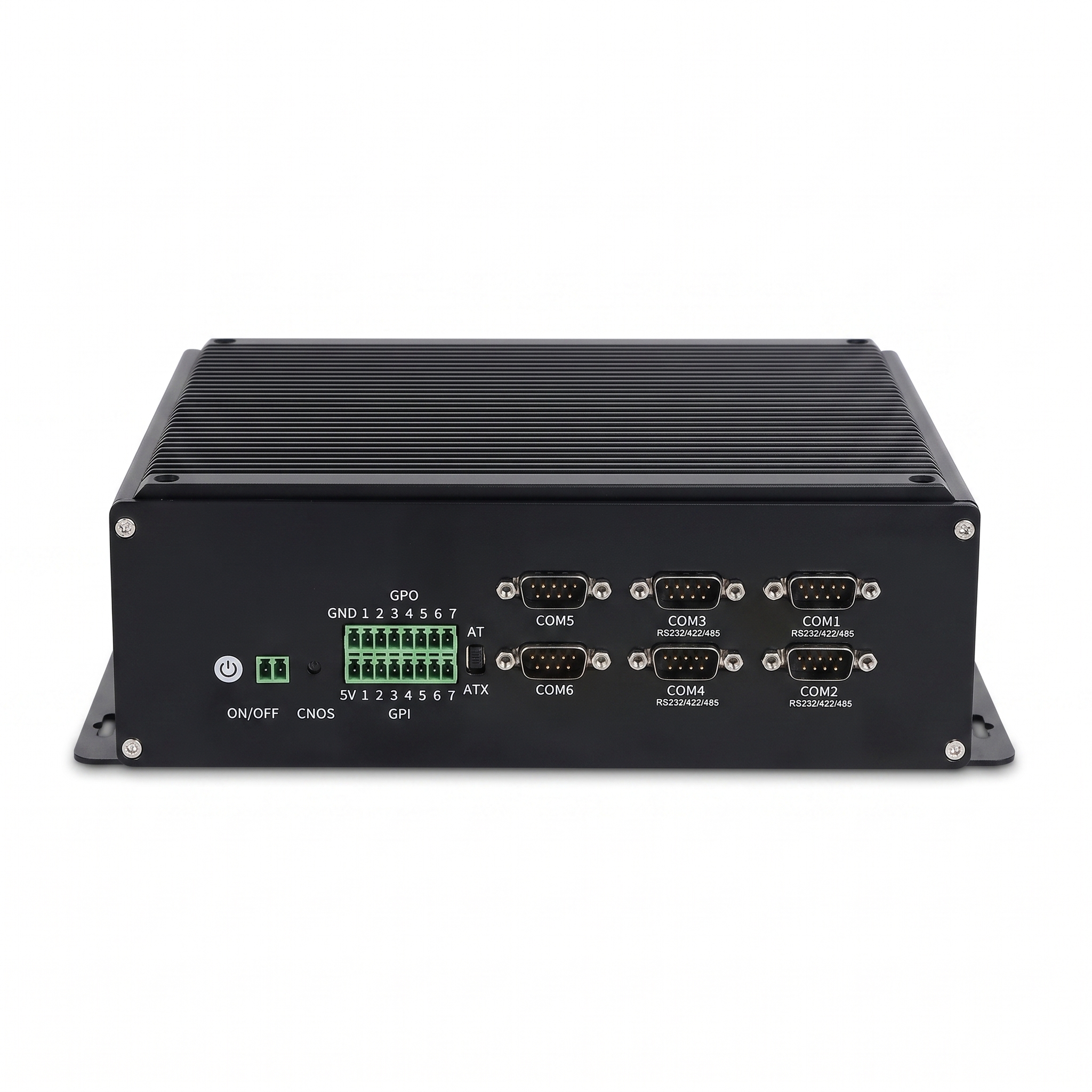

The system includes 14 GPIO interfaces and 6 RS232 serial ports. COM1–COM4 can be configured for RS422 / RS485, providing flexible connectivity for compatible industrial equipment.

Fast wired networking.

Dual 2.5GbE Ethernet interfaces provide independent high-speed wired network connections, while two Wi-Fi antenna interfaces support compatible wireless configurations.

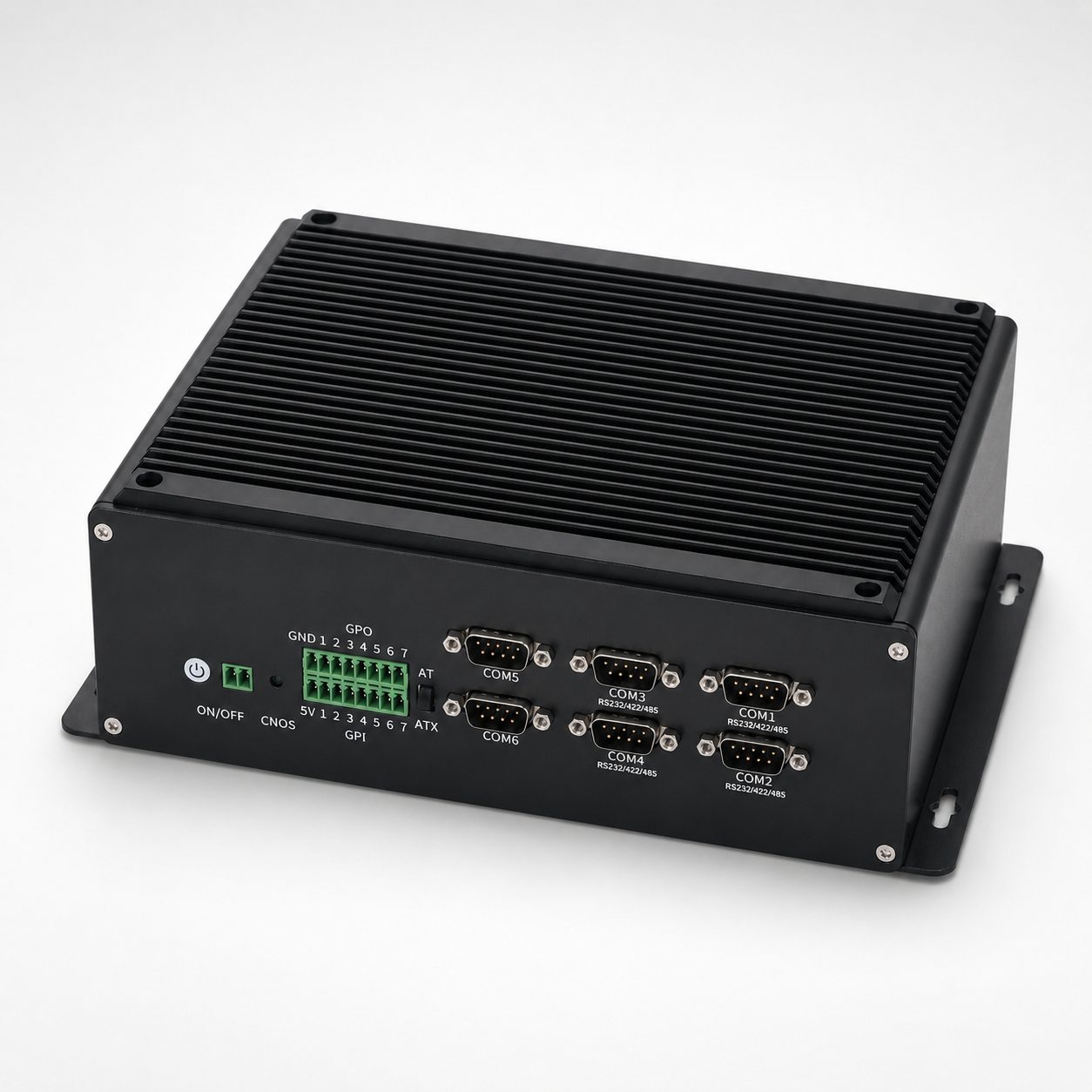

Compact Industrial Chassis

Built to fit where it matters.

252 × 180 × 76 mm Length × Width × Height
